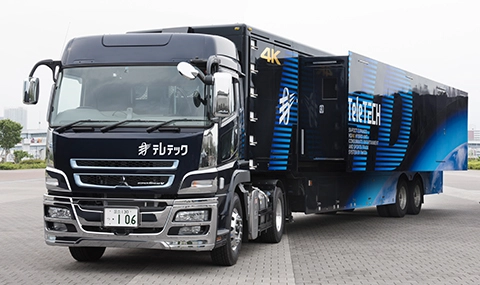

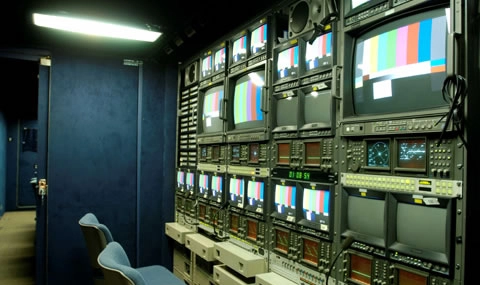

OB VAN

HD-106
※Our fully customized trailer (including design and manufacturing)

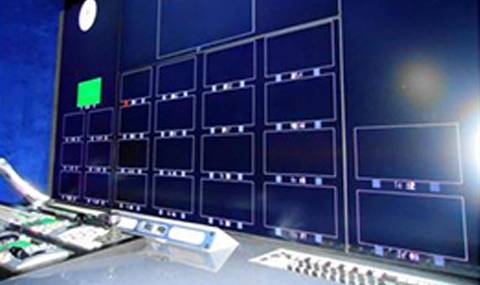

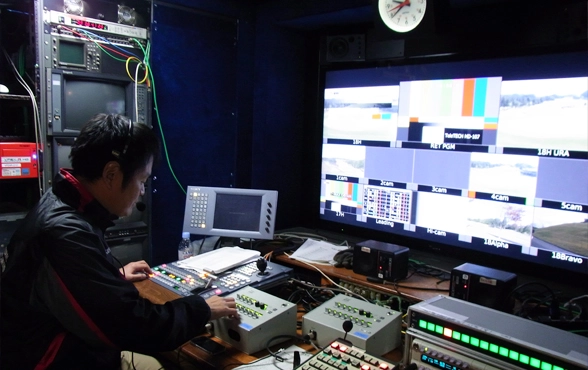

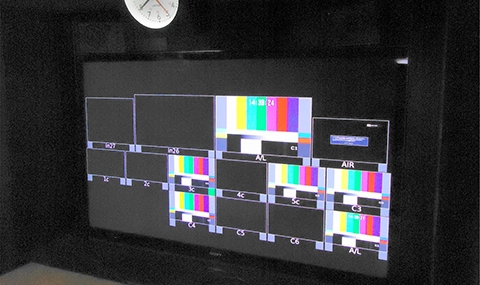

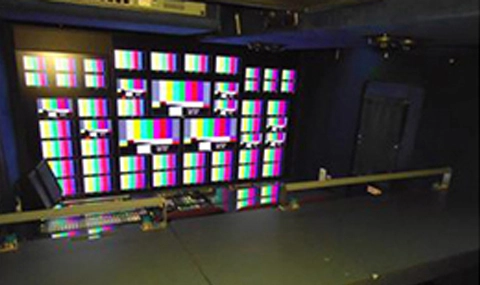

An amazing wall mounted multi-monitor also a comfortable living environment make for an efficient productin.

Length
16300mm
Trailer portion:13630mm
Width
2490mm
Extended width:3490mm
Height
3770mm
Indoor height:1940mm
Power Supply
AC 100V 50KVA
External Output
  1. Spacious work area is designed as a Center-OB VAN.

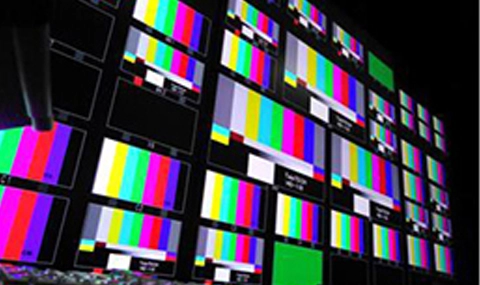

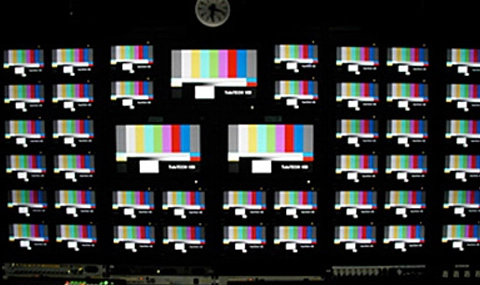

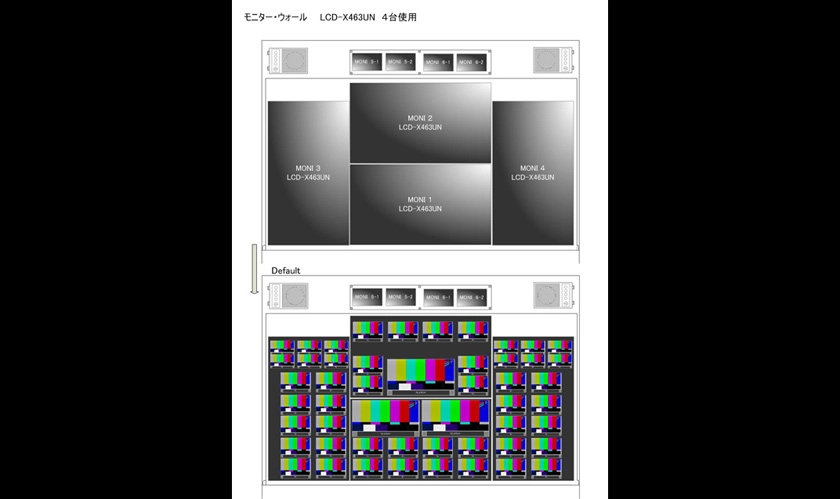

  2. Magnificent wall mounted monitors contribute to represent materials in multi.
  3. Provide flexible working environment and technology for responding to a wide variety of needs using recombination-free materials.

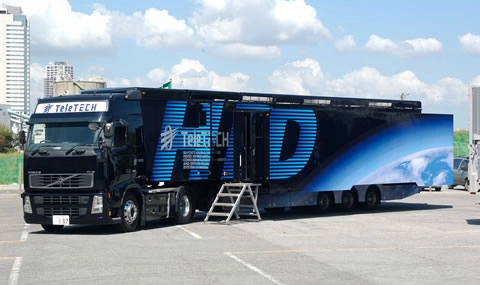

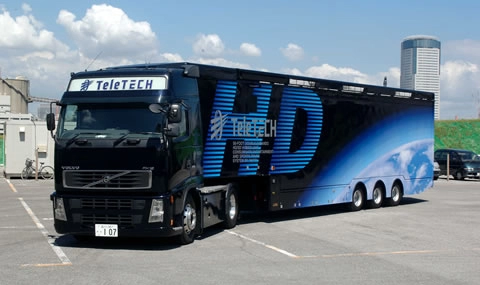

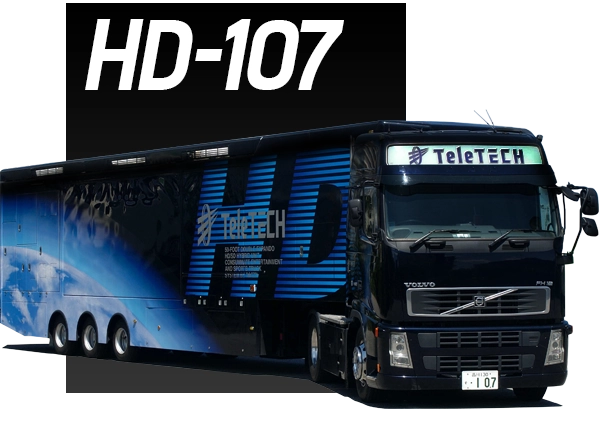

中継車 HD-107
※Our fully customized trailer (including design and manufacturing)

The only extra large broadcast trailer in Japan

Length
16390mm
Trailer portion:13540mm
Width
2490mm
Extended width:4490mm
(Right extended:600mm Left extended:1400mm)
Height
3760mm
Indoor height:2170mm
Power Supply
AC 100V 60KVA
Separate power source vehicle needed
External Output
Switcher
Sony MVS-7000X 60input 3ME
32Button
Sub SW 2ME 12Button
DSK
6ch
Router
SAM Sirius830 144 x 144 Hybrid Router
Slow SW
7system

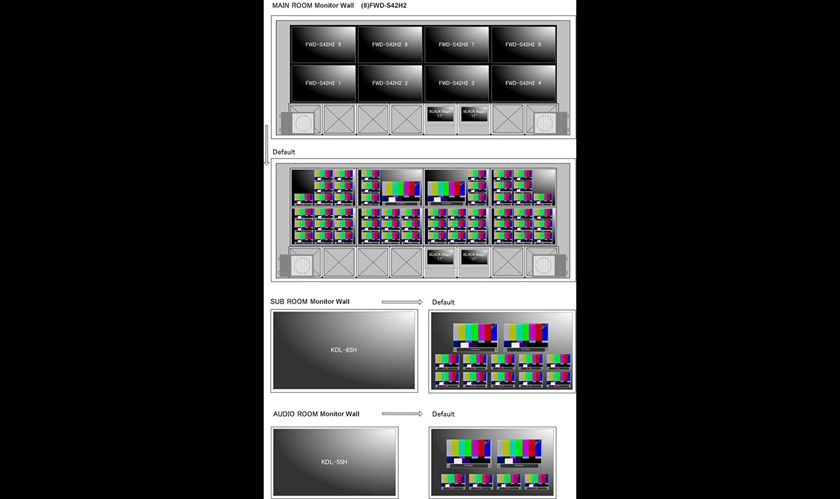

Monitor
Main room:FWD-S42H2 X8
AUD room:KDL-55HX950 X
Sub room:KDL-65HX950 X1
Camera
Equipped with order
SONY HDC-5000 / HDC-5500 / HDC-4300 / HDC-2000 / HDC-2500
Lens
Equipped with order
Canon
UJ-111, MJ-100, XJ-95, MJ-86, MJ-25, CJ-25, HJ-24, HJ-21, HJ-22, HJ-11
Fujinon
XA-101, XA-87, XA-76, UA-24, HA-22, HA-23, HA-13, HA-14
VTR
Equipped with order
PDW-HD1550
Hard Disk
Recorder
Equipped with order
EVS XT-VIA(12ch) / XT4K(12ch) / XT3(8ch)
SONY PWS-4500
Riedel RiMotion R6

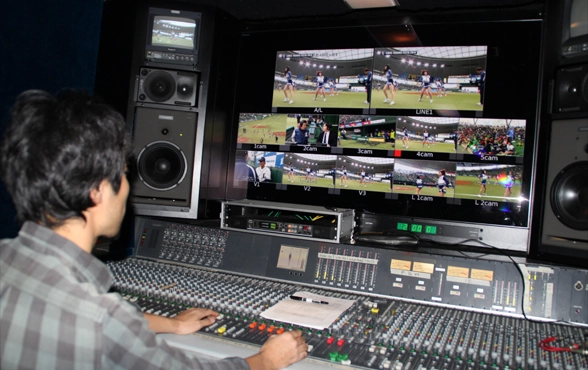

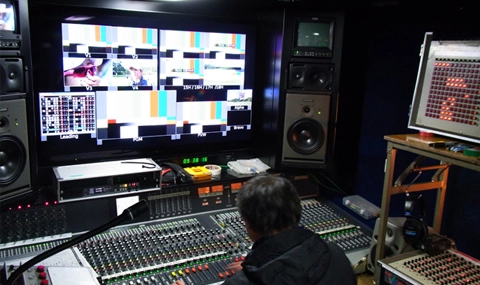

Audio
STUDER 928/5/48+2s set
Income
RTS ADAM-M 128×128 (内OMNEO48x48)

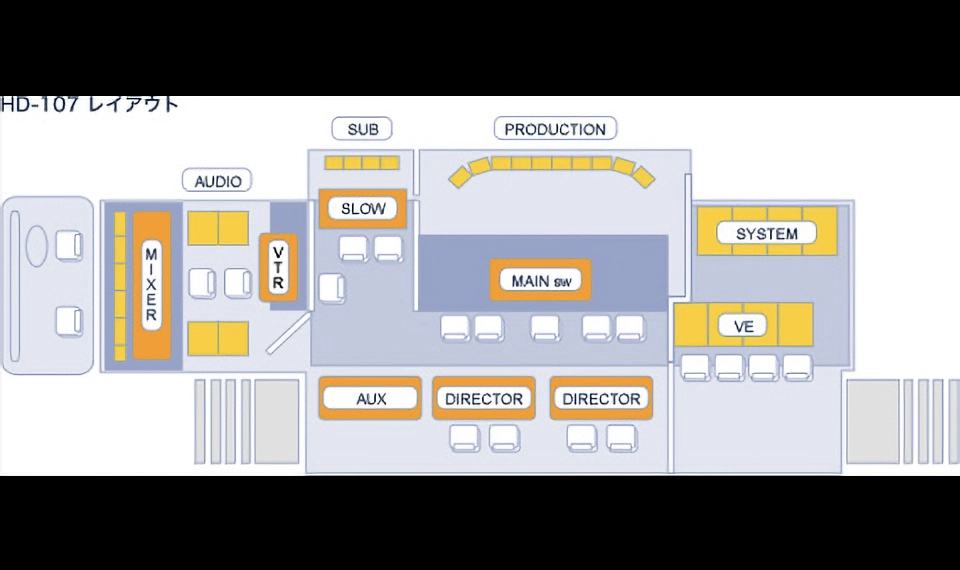

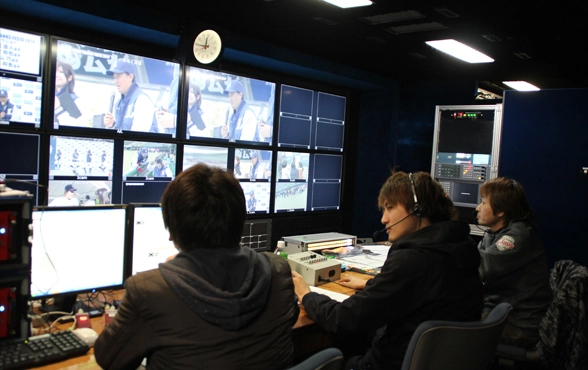

  1. Spacious work space made possible with a large trailer and extension system. Independent working space with production room, audio room and VE room.
  2. 2.3G-SD system that also supports 4K 60P broadcasting.

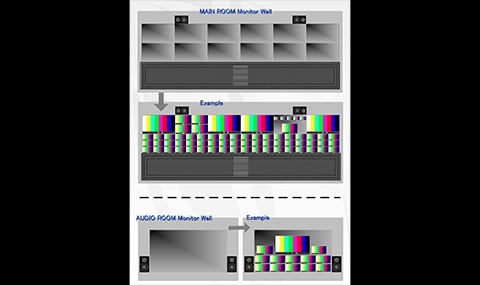

  3. Introduced a high-resolution/HD liquid crystal panel. Freely arrange monitor size and layout.

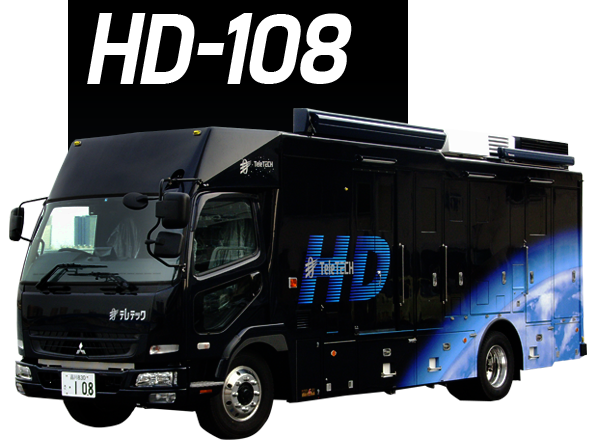

中継車 HD-108
※Our fully customized trailer (including design and manufacturing)

Supports 3D recording while exhibiting ‘power,’ ‘presence,’ and ‘grace’

Length
8080mm
Width
2440mm
Indoor width:2190mm
Height
3360mm
Indoor height:1900mm

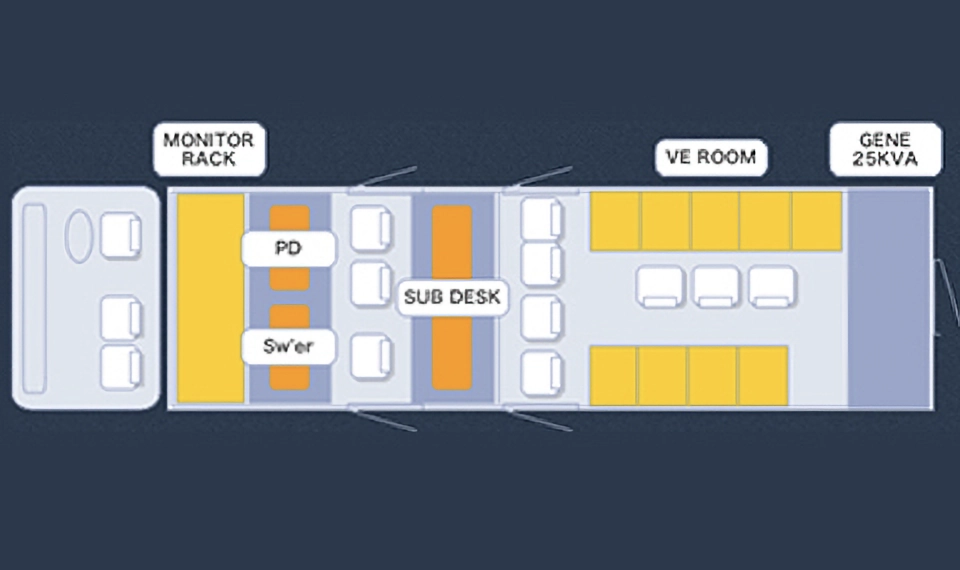

Power Supply
25KVA/100V/50-60Hz
External Output
AC100V 5KVA
Switcher
SONY XVS-8000 80input
(Main controller 2ME 20Button,Sub controller 1ME 20Button)
Router
GVG NV8144 144X144
Camera
Equipped with order
SONY HDC-5000 / HDC-5500 / HDC-4300 / HDC-2000 / HDC-2500
Lens
Equipped with order
Canon
UJ-111, MJ-100, XJ-95, MJ-86, MJ-25, CJ-25, HJ-24, HJ-21, HJ-22, HJ-11
Fujinon
XA-101, XA-87, XA-76, UA-24, HA-22, HA-23, HA-13, HA-14
VTR
Equipped with order
PDW-HD1550
Hard Disk
Recorder
Equipped with order
EVS XT-VIA(12ch) / XT4K(12ch) / XT3(8ch)
SONY PWS-4500
Riedel RiMotion R6
  1. Broadcast trailer that is useful for recording entertainment to sports broadcasting and many other uses
  2. Ability to cover the entire hole for golf broadcasting
  3. Progressive recording (supports 23.98Psf, 29.97Psf)
  4. Large work space for comfort (front production space for 3, back space for 4)
  5. Equipped with 6 CCU and able to operate up to 12 CCU
  6. Corresponding to 4K recording

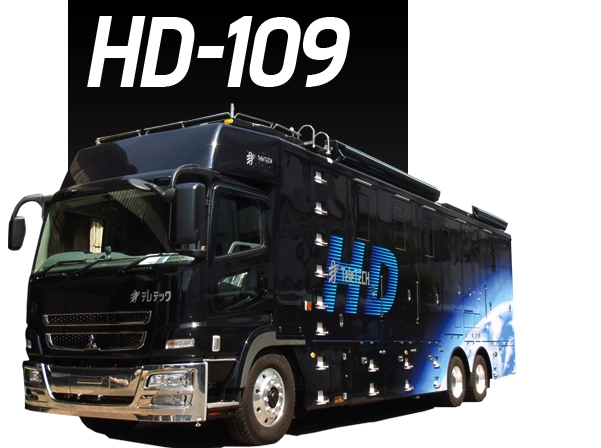

中継車 HD-109
※Our fully customized trailer (including design and manufacturing)

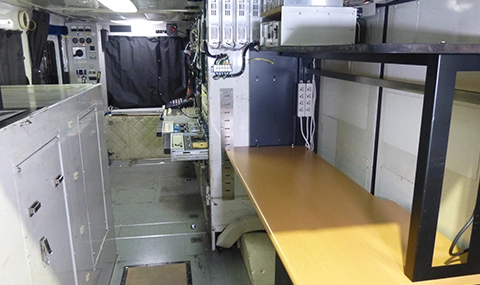

Workability is priority with room reserved for VE/equipment in this limited space

Length
10500mm
Width
2490mm
Indoor width:2290mm
Height
3650mm
Indoor height:2060mm
Power Supply
50KVA/100V/60Hz
External Output
AC 100V 10KVA
Switcher
Ikegami HSS-3000 48input 3ME
32Button
Sub SW 2ME 20Button
DVE 3D 1ch / 2D 1ch(Per ME)
DSK
Videotron 8ch
Router
Ross Video Ultrix 5RU 144×144
Slow SW
9Line

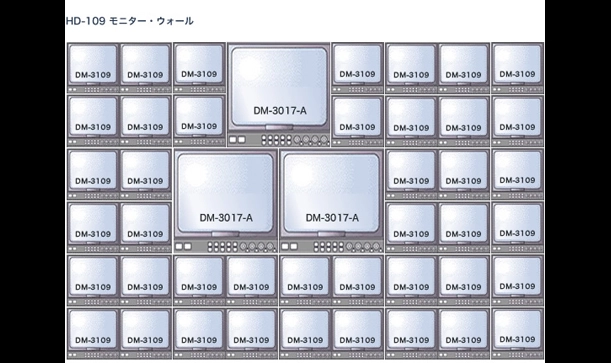

Monitor
SONY FW-43BZ30J / BZ x4
FOR.A MV4200
Camera
Equipped with order
SONY HDC-5000 / HDC-5500 / HDC-4300 / HDC-2000 / HDC-2500
Lens
Equipped with order
Canon
UJ-111, MJ-100, XJ-95, MJ-86, MJ-25, CJ-25, HJ-24, HJ-21, HJ-22, HJ-11
Fujinon
XA-101, XA-87, XA-76, UA-24, HA-22, HA-23, HA-13, HA-14
VTR
Equipped with order
PDW-HD1550
Hard Disk
Recorder
Equipped with order
EVS XT-VIA(12ch) / XT4K(12ch) / XT3(8ch)
SONY PWS-4500
Riedel RiMotion R6
Income
RTS ODIN 64×64
  1. Ability to flexibly support various types of TV production
  2. Large production space based on comfort (Front space for 3, middle space for 5, and back space for 3)
  3. Designed with workability in mind while maintaining VE/equipment space

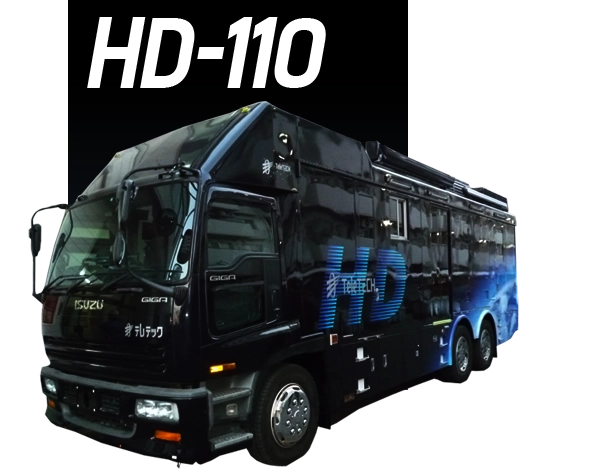

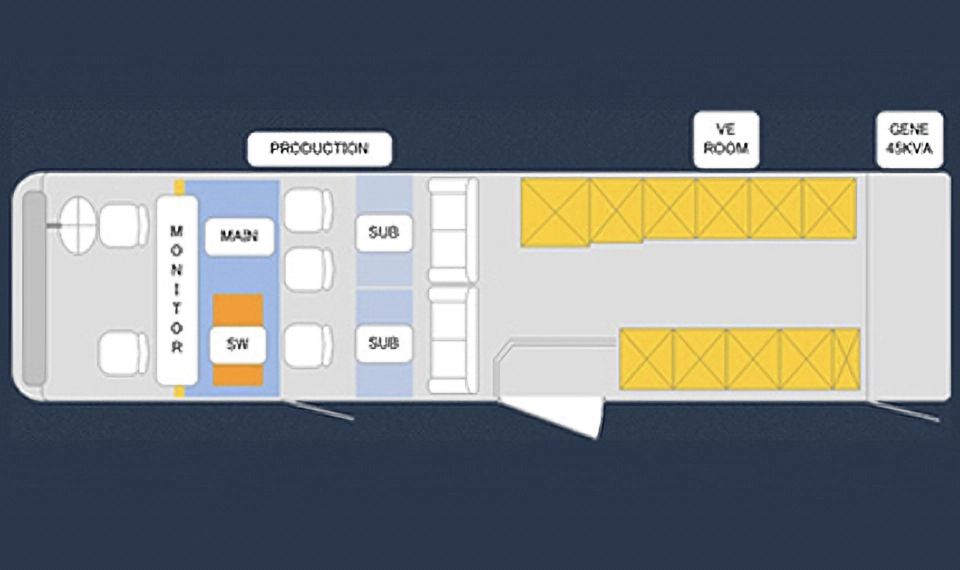

中継車 HD-110
※Our fully customized trailer (including design and manufacturing)

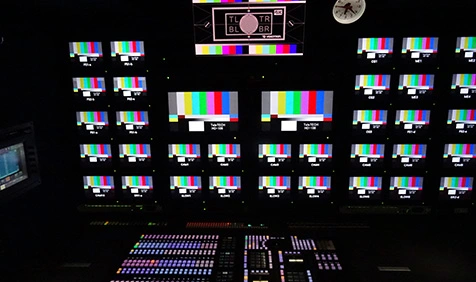

Production space equipped with various monitor design

Length
9800mm
Width
2490mm
Height
3500mm
Power Supply
45KVA/100V/60Hz
External Output
AC100V 120KVA
Switcher
Ikegami HSS-330 48input 2ME 28Button
DSK
4ch
Router
Ikegami HD Router HSM-64×64
Slow SW
6system
Camera
Equipped with order
SONY HDC-5000 / HDC-5500 / HDC-4300 / HDC-2000 / HDC-2500
Lens
Equipped with order
CANON
UJ-111, MJ-100, XJ-95, MJ-86, MJ-25, CJ-25, HJ-24, HJ-21, HJ-22, HJ-11
Fujinon
XA-101, XA-87, XA-76, UA-24, HA-22, HA-23, HA-13, HA-14
VTR
Equipped with order
PDW-HD1550
Hard Disk
Recorder
Equipped with order
EVS XT-VIA(12ch) / XT4K(12ch) / XT3(8ch)
SONY PWS-4500
Riedel RiMotion R6
Income
Clear-CAM Matrix Plus3 Compact72 set
  1. Production space with various monitor design
  2. Large work space with comfort in mind (front space for 3, back space for 4)
  3. VE/equipment space reserved with workability in mind

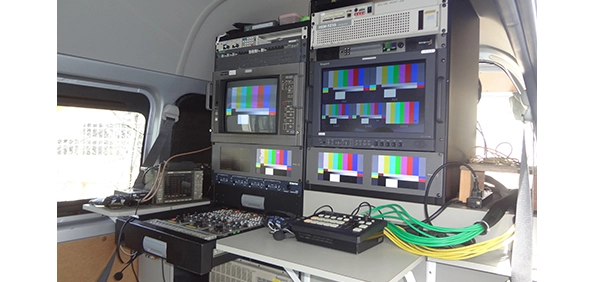

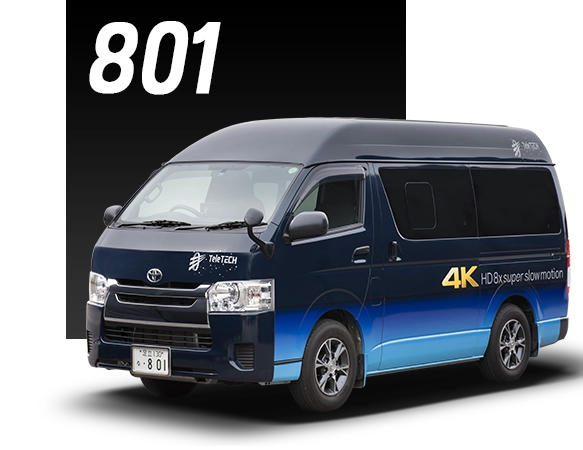

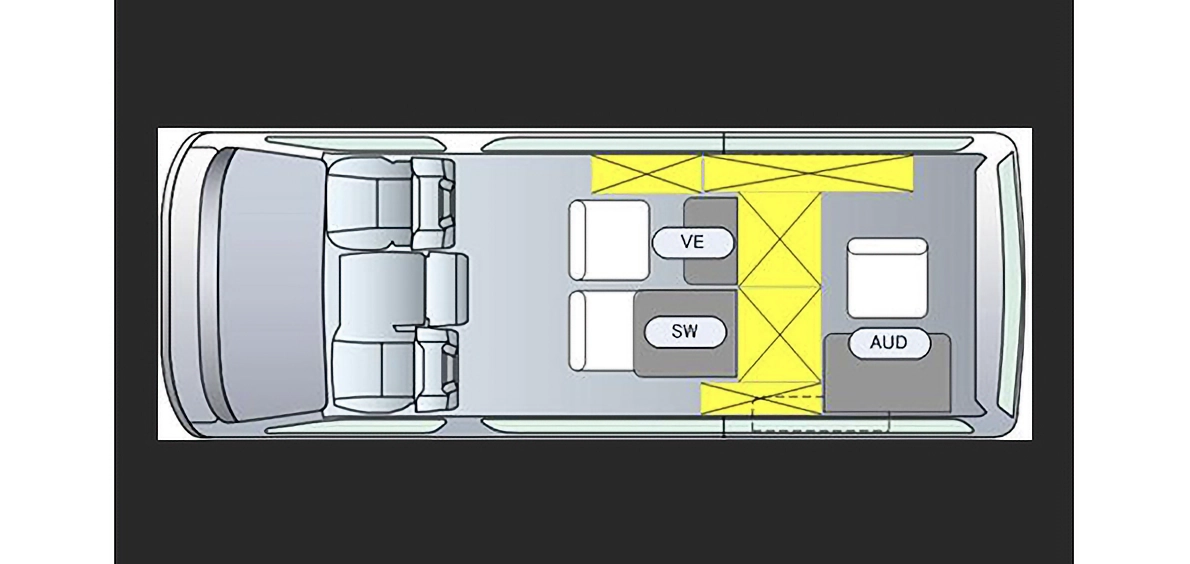

中継車 801
※Our fully customized trailer (including design and manufacturing)

Clear “4K 2X slow” also HD high frame rate (6X/8X slow) And 4K recordable

Length
4690mm
Width
1690mm
Height
2240mm
Power Supply
AC 100V 50A (Special power supply need)
External Output
Camera
SONY HDC-4300
CCU
SONY HDCU-2500 / BPU-4000
Video Server
SONY PWS-4400 / 4500EVS XT3
  1. It’s possible to film 4K
  2. The operation space where a new picture expression is added by sports relay

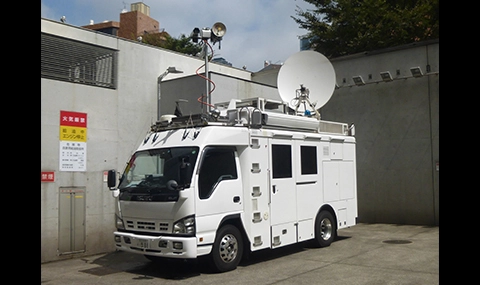

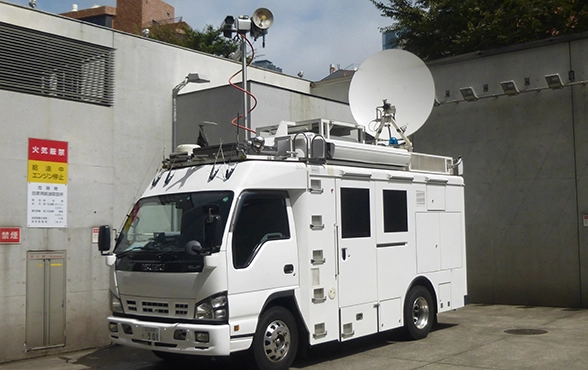

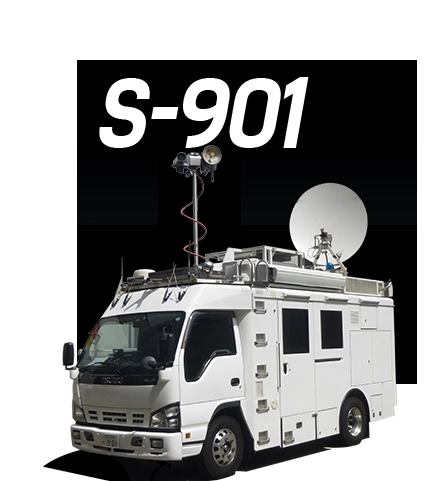

中継車 S-901
※Our fully customized trailer (including design and manufacturing)

Telecommunication expert equipped with 2 SNG transmitters

Length
5850mm
Width
2220mm
Height
3222mm
Power Supply
20KVA
External Output
3KVA
Switcher
Ikegami HSS-300
Camera
Ikegami HDK-79EXⅢ
※2 CCUs permanently installed
Lens
Canon HJ-21
Audio
Qolle TAMURA AMX-12
VTR
SONY HDW-S280 X1
SONY PDW-HD1550 X1
Optical
multiplexer
hewtech NDM-500
Ikegami FE-100
  1. SNG transmitter equipment.
  2. Transmission / live broadcasting relay car equipped with 12m hydraulic pole.
    (JSAT / HD transmission possible.)

VIDEO PRODUCTION

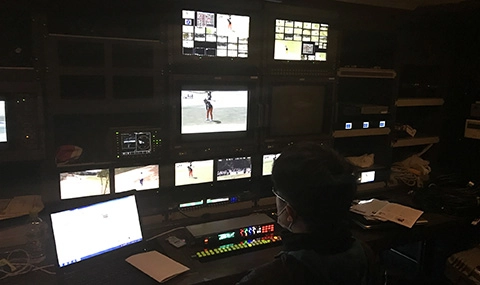

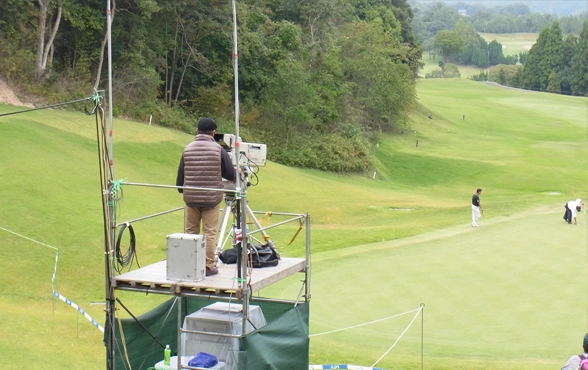

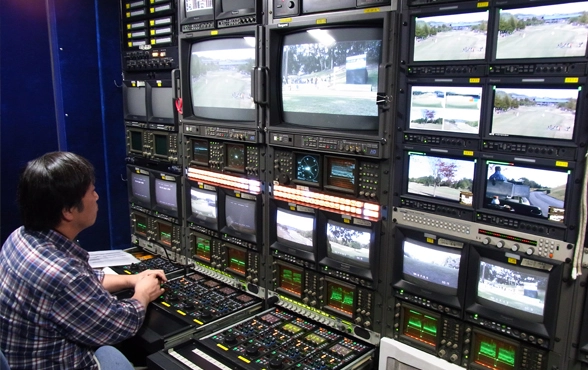

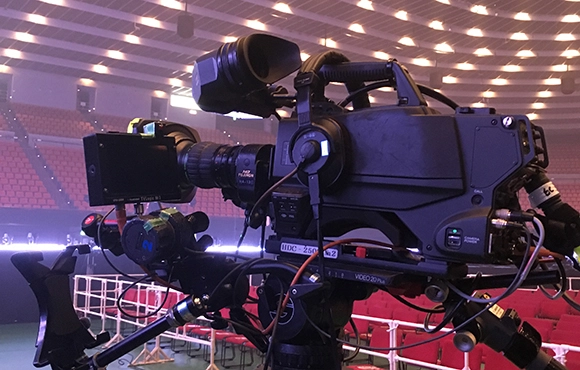

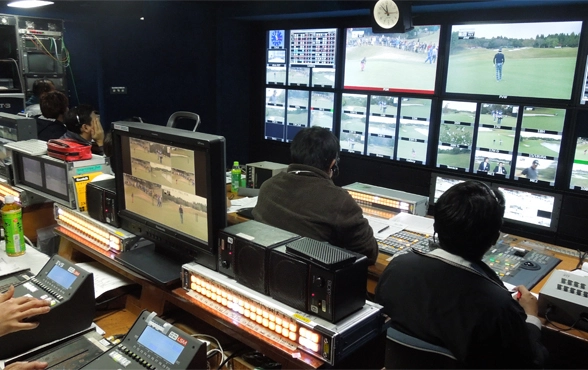

Sports Broadcasting

Technology that was cultivated by our experience from difficult golf broadcasting

Live broadcasting of sports that brings excitement and emotion to the viewers. In Teletech, we pride our broadcasting achievements in various sporting events including baseball, soccer, basketball and rugby to relay marathon, motor racing and wrestling.

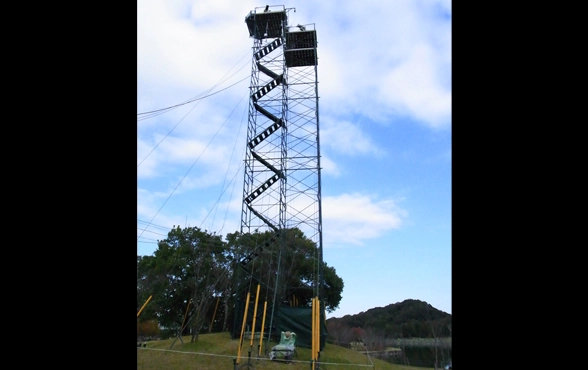

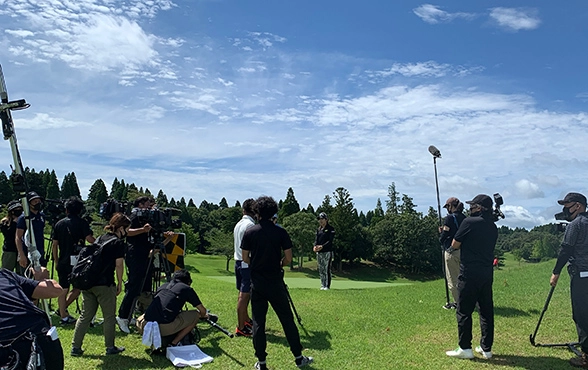

Golf broadcasting is the most difficult due to its simultaneous play at multiple locations.
Teletech has been broadcasting pro-golf since its early days using high technology, well-received by viewers.

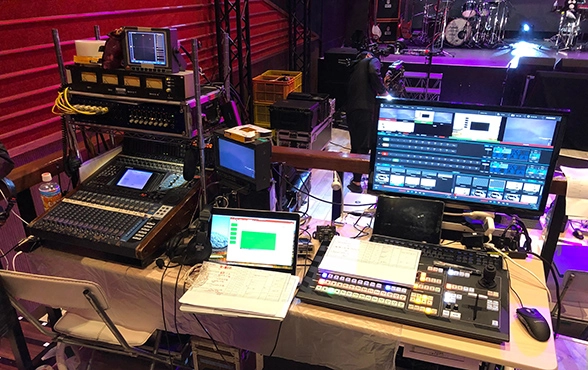

Concert/Event Broadcasting

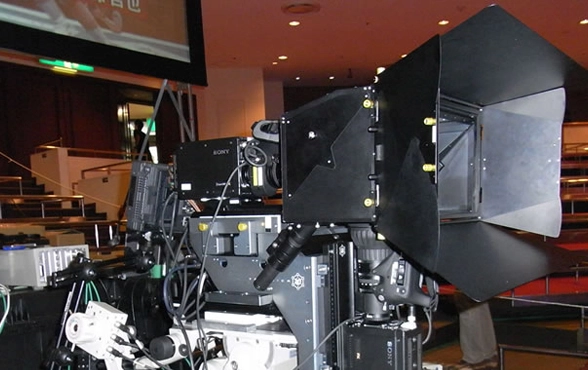

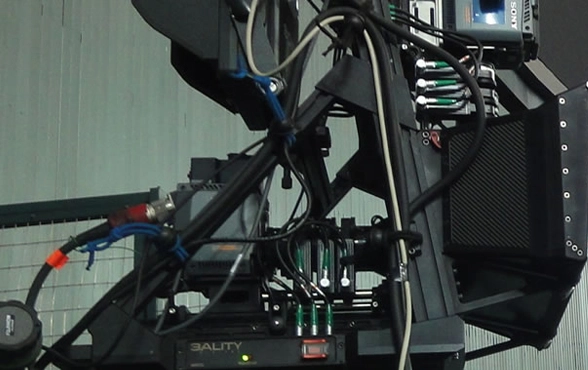

Supports the latest technology such as multi-frame 24p/30p and 3D/4K

The number one mission of a broadcasting company is to be able to make the producer’s intention into reality. At Teletech, we have the broadcast technology system to meet any of your requests to ensure that the producer’s intention is appropriately delivered.
Of course, we are also able to assist during the production process and meet your requests. Please utilize Teletech to personalize your production strategy needs.

TV Programming Production

Produce wide range of contents from sports to variety

At Teletech, we are not limited to sports, but each genre of division are able to come together to produce various TV programs.Excellent mobility and broadened horizon production ability cultivated by broadcasting work. Keeping Teletech’s ability in mind, we continue to provide our broadcasting customers.

VP/CM Production

VP/CM production with an impact utilizing film/CG

Film production cultivated by our field in broadcasting technology and CG picture cultivated by our field in production. Teletech are the one stop shop for all your needs. Our customers are impressed by our VP/CM production ability that brings out 120% of film and CG ‘strengths.’

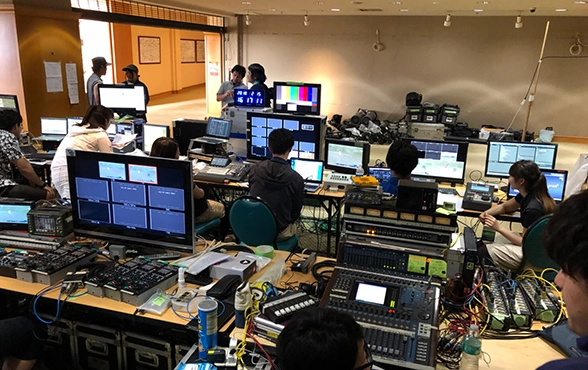

On-Site Filming

Film with mobility, based on our abundant equipment and experience.

At Teletech, we are not only limited to large scale broadcasting, but also on-site filming. We are able to provide a ‘comprehensive mobile’ on-site filming services through broadcast vehicle with abundant built-in equipment and experienced staff that are able to respond to unforeseen accidents and weather conditions.

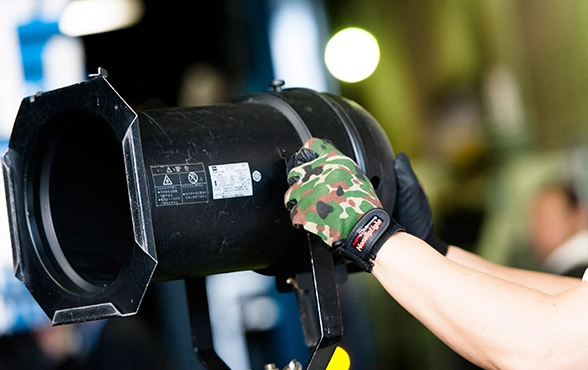

Lighting Technology

Lighting skill with dramatic presentation, as well as basic technology

Lighting skill is just as important as production and filming since failure is not an option during live broadcasting. Lighting skills will determine whether a program is good or bad. Safety, such as heavy equipment and high altitude operation, is an important part of lighting technology and not just to ‘shine light.’ Teletech provides these type of basic lighting technology services, as well as dramatic lighting for TV drama and more.

VIDEO DISTRIBUTION

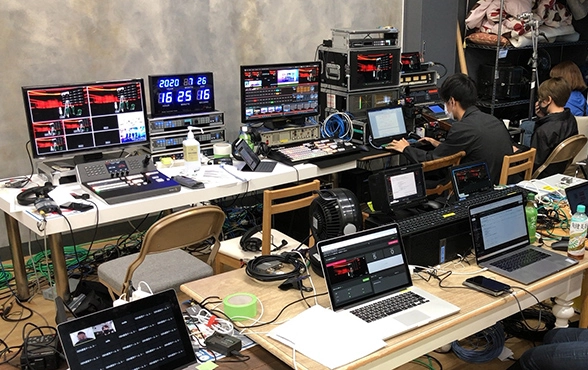

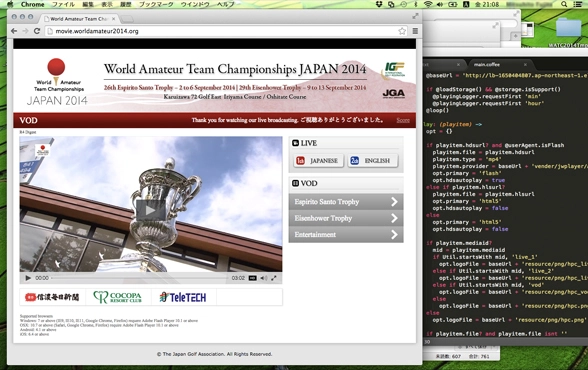

Internet Broadcasting

Internet broadcasting through TV quality

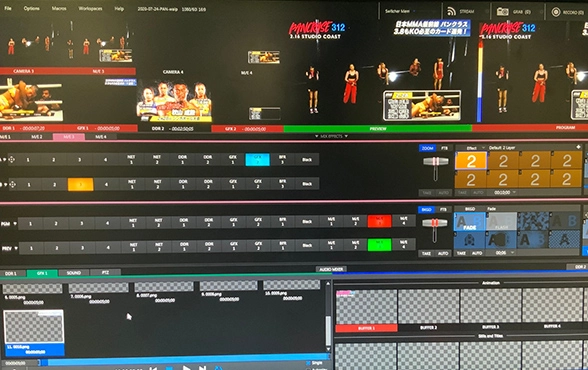

Teletech as been providing ‘TV quality internet broadcasting ‘ services since its creation. Our strength is to not only create internet-only contents but we reorganize the contents to also be utilized in TV broadcasting and packaged media through high-quality multi-use contents by providing one stop services from planning, production, broadcasting, web creation, viewer analysis, media conversion and more.

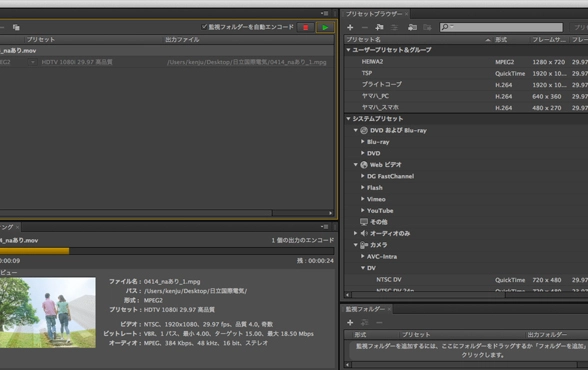

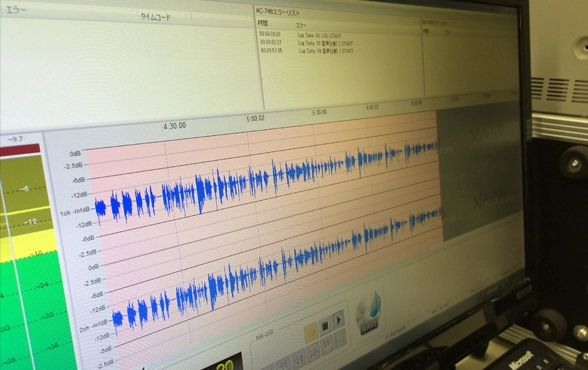

Media Conversion

Important contents will not be lost even with ICT evolution

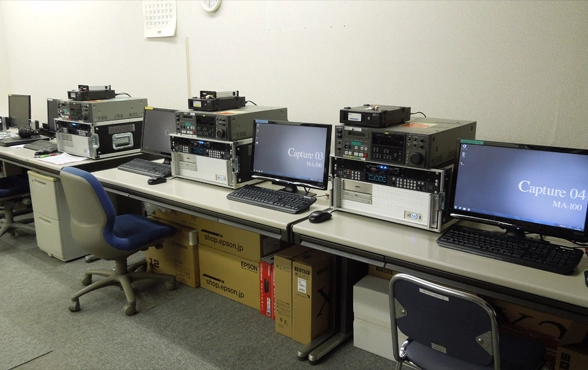

There are various ways of creating contents due to ICT and digital device evolution. At Teletech, we are able to convert our customer’s important visual property as mother contents into various format. We also provide media set service, which also allows contents for broadcasting. Please utilize the media set services as your partner.

Digital Signage

Solution starting with marketing

Digital signage that advertises through digital device. Before focusing on the things that can be ‘seen’ such as the impact of the contents… Teletech provides services that is not only focused on the hardware itself, but by understanding the customer’s current task, we are able come up with a marketing strategy to meet our expectation through digital signage.

SYSTEM DEVELOPMENT

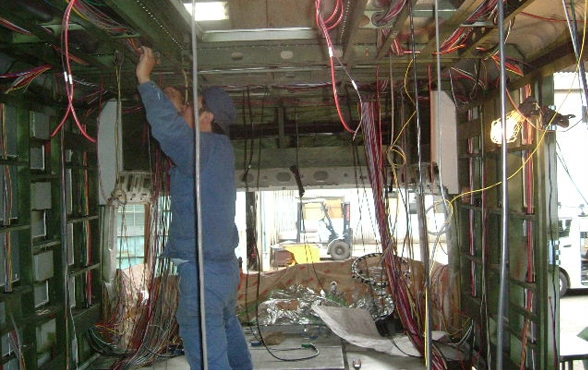

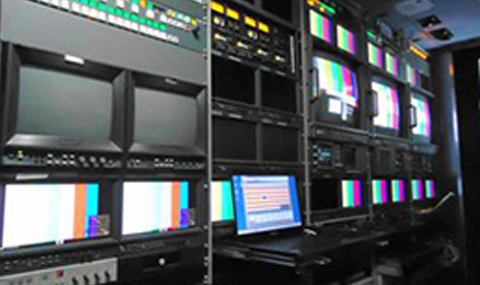

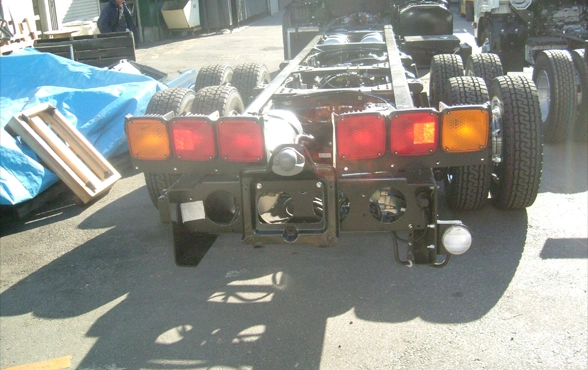

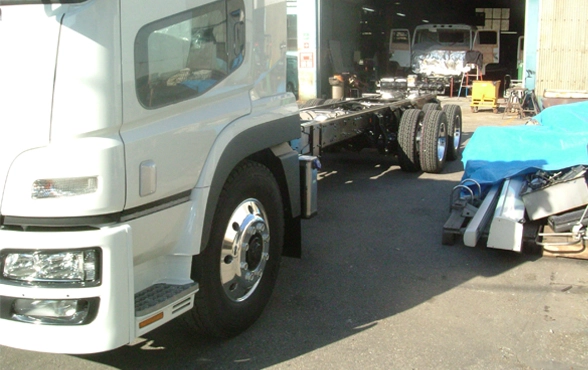

OB VAN PRODUCTION

Broadcast vehicle production from the eyes of those who utilize

Broadcast vehicle that shows filming ‘power’ outside of the TV studio. During film production, this power can be exhibited through high technology equipments. At Teletech, we focus on the application as we produce the broadcast vehicle by selecting the most applicable equipment, its configuration and wiring, as well as efficiency and comfort of our broadcasting vehicle staff.

Visual Utilization System Development

Developing business system utilizing visuals

Utilization of film is not only limited to broadcasting contents. It can also be utilized to analyze golf strokes, baseball pitch and batting, race tournament winning decisions, and other various situations. As a visual professional at Teletech, we offer system solution development that applies film, while still offering content production.

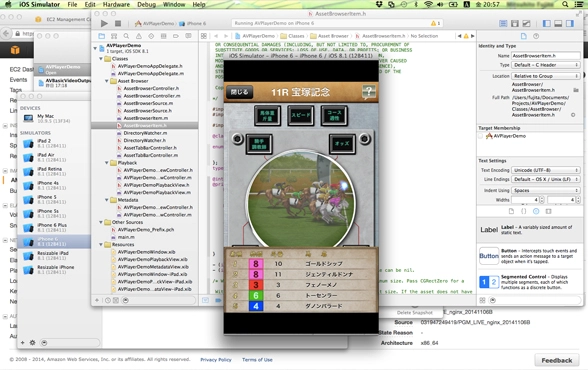

Web/Application Development
